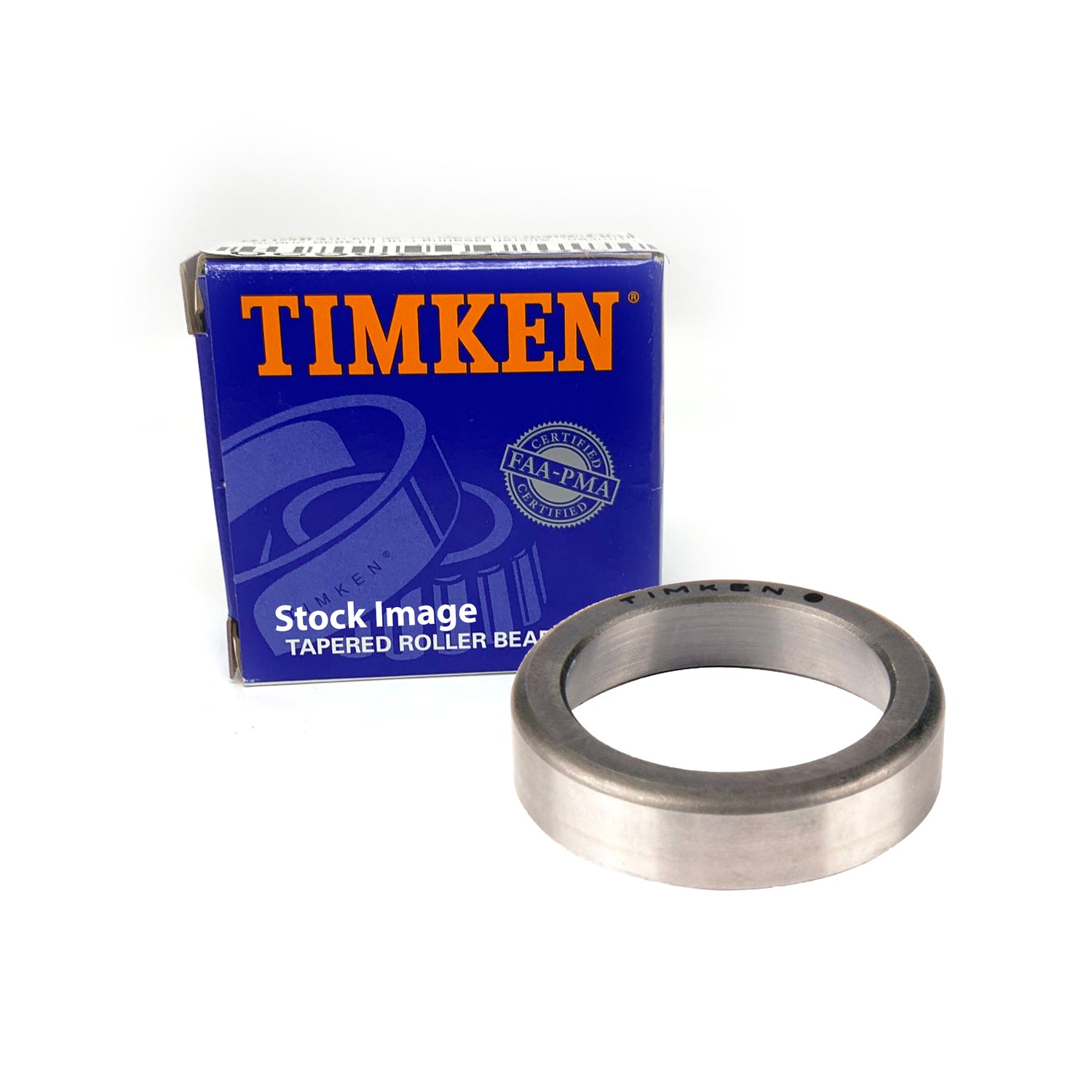

Timken – Aircraft Bearing Cup | LM501310-20629 Shop For Sale

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Specifications

• Series: LM501300
• Cup Part Number: LM501310
• Design Units: Imperial
• Approvals: FAA/PMA

Don’t be tempted to buy cheapy automotive bearings

Because Timken uses the same base part number for both the automotive and aviation versions of these bearings, many people mistakenly use the lower quality automotive bearings in their airplane. Normally, Aviation bearing part numbers include the 20629 dash number. It is critical that the FAA-PMA Class 2 version be used for aircraft applications for two reasons:

• They are a higher class of bearing with tighter tolerance and have been subjected to more stringent quality control procedures. Due to the smaller diameter of aircraft wheels, at a given ground speed the bearings rotate at a much higher RPM and require the tighter tolerances to prevent premature failure.
• Example: At a 70 mph touchdown speed (equivalent to highway speed of a car), a typical 17 inch diameter airplane tire is rotating at 1384 RPM, whereas a typical 27 inch car tire is only rotating at 871 RPM. So even though the aircraft bearing is only subject to intermittent use, some of the performance demands are much higher than a typical automotive application.

It is a violation of FAA regulations to use non-approved automotive bearings on certified aircraft.

This Timken aircraft bearing cup is a vital part for your aircraft. Here’s how to use it: Mount it in opposing pairs on a shaft as per the standard procedure. Note that it’s crucial to use the FAA-PMA Class 2 version for aircraft applications. Avoid using cheap automotive bearings as they won’t meet the high standards for aircraft use. For maintenance, regularly check for any signs of wear or damage. Keep it clean to ensure smooth operation. Remember, using non-approved automotive bearings on certified aircraft is against the rules.
