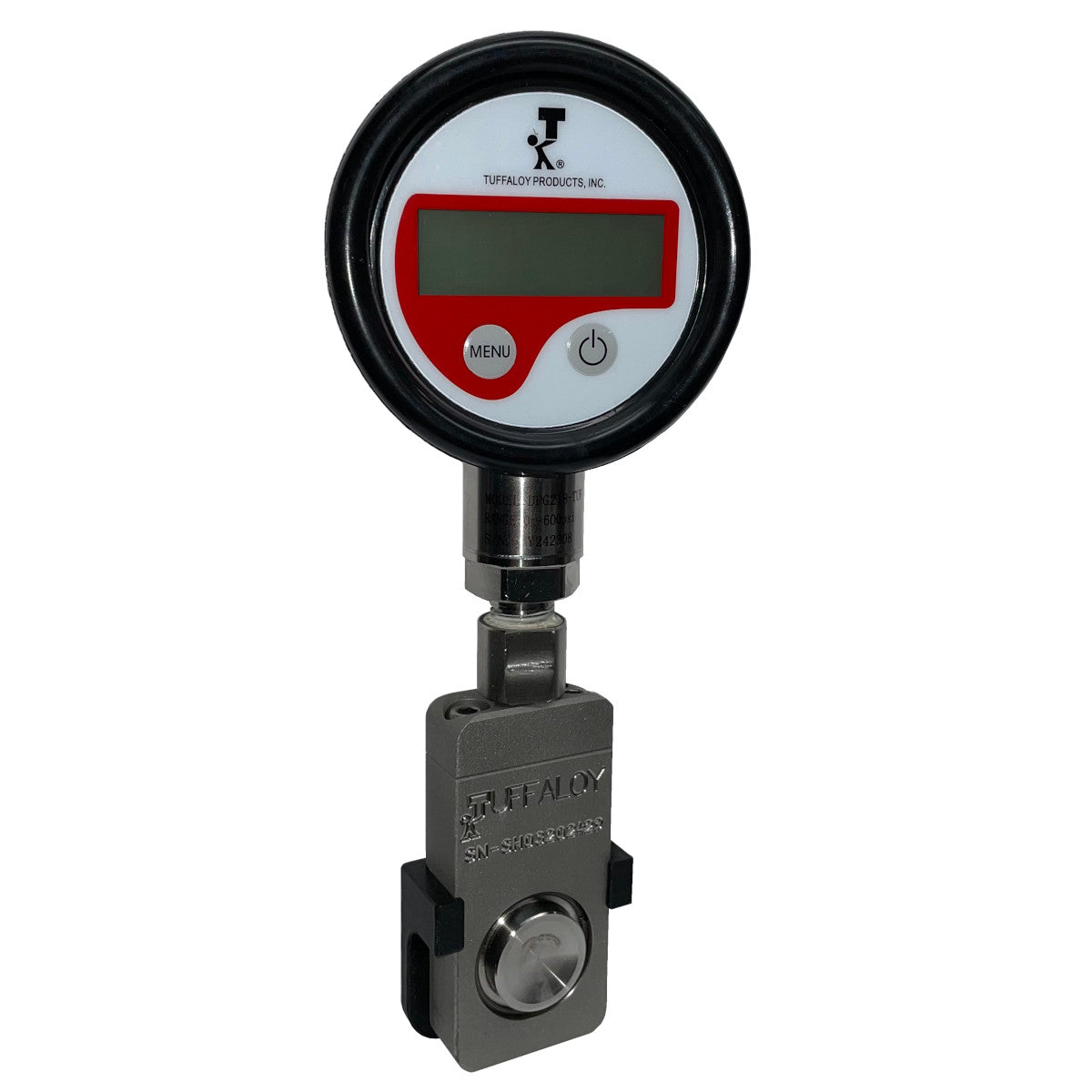

Digital Hydraulic Weld Gauge 600LB With Case Online Online Cheap Pice

Digital hydraulic gauges feature an LCD display for easier reading of weld forces. Weld force is a critical variable in the resistance welding process. This tool allows users to validate and monitor weld forces.

The gauge features a swiveling head allowing for measurement readings in confined spaces. The load cell features a concave landing pad to accommodate varying electrode nose types. Optional flat landing pad is available upon request.

• The maximum force reading is 600 lbs
• The gauge accuracy is 2%
• The gauge cannot be used during the passing of weld current
• Requires a 3/4 inch opening between electrodes
• Displays units in PSI, bar, kgf, Mpa and atm
• Includes peak hold feature to display the peak force during measurement
• Includes NIST calibration certificate
• Response time less than 500 milliseconds
• Includes protective carrying case

To use this digital hydraulic weld gauge, first, make sure there is a 3/4 inch opening between the electrodes. Then, turn on the gauge. When taking a measurement, the swiveling head allows you to position it easily, even in tight spaces. The LCD display will show the weld force clearly. Remember, it can’t be used while the weld current is passing. After use, keep it in the protective carrying case provided. Periodically check the calibration certificate to ensure accuracy. If you need to change the landing pad to a flat one, you can request it. This gauge is great for validating and monitoring weld forces during the resistance welding process.
